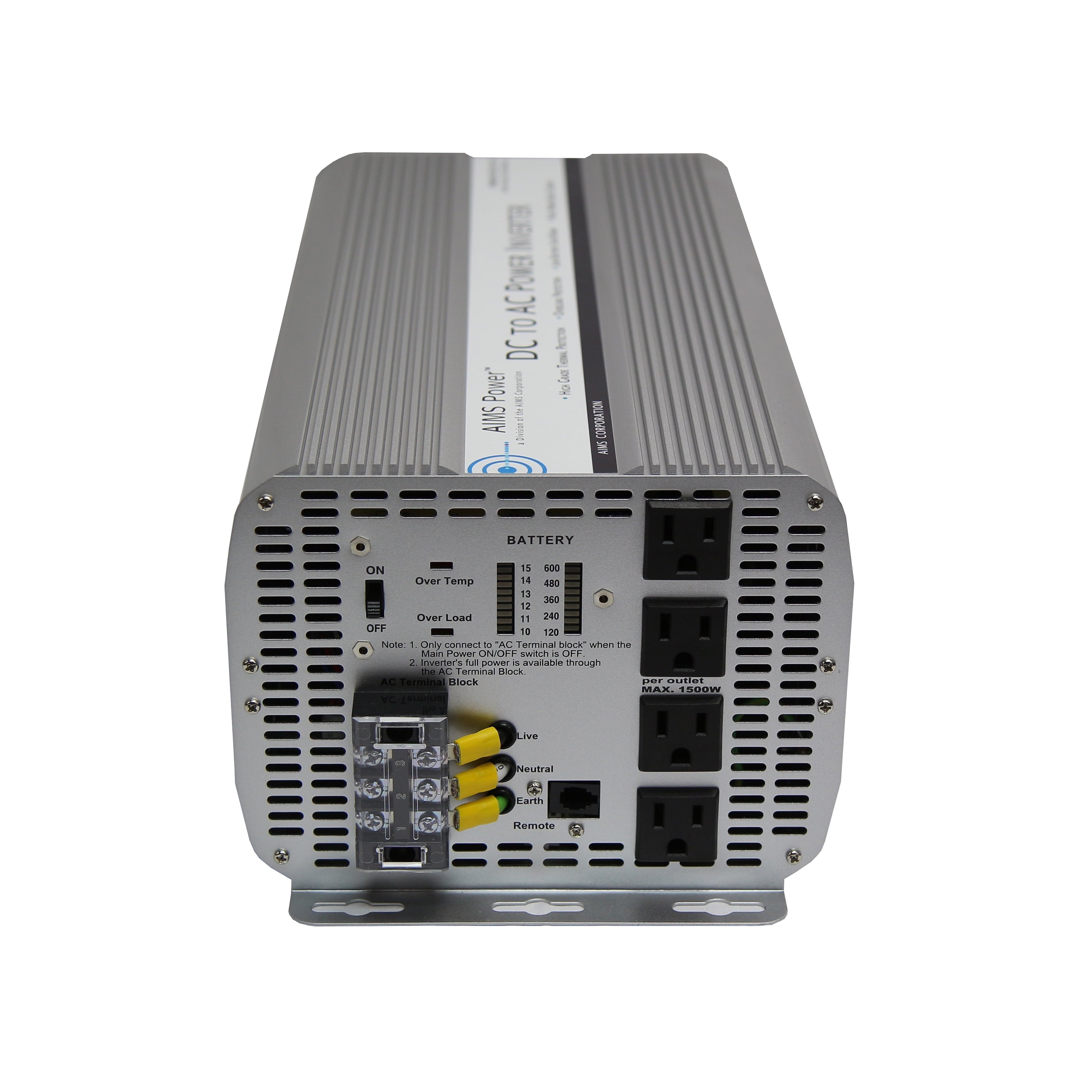

Aims Power PWRINV500036W 5000 Watt Power Inverter 36 Volt Input

AIMS offers this highly efficient 5,000 watt power inverter for consumers specifically looking for a 36 volt power inverter for their off-grid applications. The power inverter is a modified sine wave device designed for use in marine recreation, fleet vehicles, and many other applications.

• 5000 Watt max continuous power.
• 36 Volt Power Inverter.
• Modified sine wave.
• Volt meter on front panel to monitor your battery voltage.
• Amp meter on front panel to monitor your current use (rate at which battery is drained).
• AC Direct Connect Terminal.
• Over Temperature LED indicator.
• Over Load LED indicator.
• Quadruple ac receptacle that can be used with any separate splitter to provide even more outlets.
• On/off switch.
• Over Temperature protection.
• Over Load protection Single cooling fan operation thermally controlled Internally fuse protected AC output short circuit protection.
• Auto reset on most fault conditions.
• Aluminum case for optimal cooling.
• Pre-wired for remote on/off switch.
• Pre-slotted mounting plate.

• Continuous output power: 5000 Watts.
• Surge power capability (peak power): 10,000 Watts.
• DC input / operating voltage: 30 to 48 Volts.
• Output voltage: 120 Volts ac +/- 10%.
• Output wave form: modified sine wave with phase correction.
• Output frequency: 60 Hz +/- 1 Hz.
• Battery low voltage alarm: 31 +/- 0.5 Volts.
• Battery low voltage shutdown: 28 +/- 0.5 Volts.
• No load current: < 0.9 Amps.
• Full load efficiency: 90%.
• 1/3 load efficiency: 95%.
• No load minimum operating temperature: -15 degrees Celsius.
• Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown).
• AC output Socket Type: quadruple Type 2 -3 prong.
• High input voltage protection: 48 volts.
• Low input voltage shutdown: 28 volts.
• Dimension - 17 x 6 x 7.75 in.
• Item Weight - 16.4 lbs.
